SUPPORTO FYC 65 TF SKF MELUCCI

EAN
7316570157666

DisponibileSpedizione immediata

FYC 65 TF

SUPPORTO

EAN
7316570157666

Unità Y con flangia rotonda e triangolare
Diametro interno: 65,00 mm
Diametro esterno: 205,00 mm
Spessore: 72,90 mm

Spese di spedizione a € 9,76

Listino
~~€ 347,74~~

Sconto
-65,00%

Il tuo prezzo (IVA esclusa)
€ 121,71

(€ 148,48 IVA inclusa)

Quantità:

Preferiti +-

Descrizione

Unità Y con flangia rotonda e triangolare

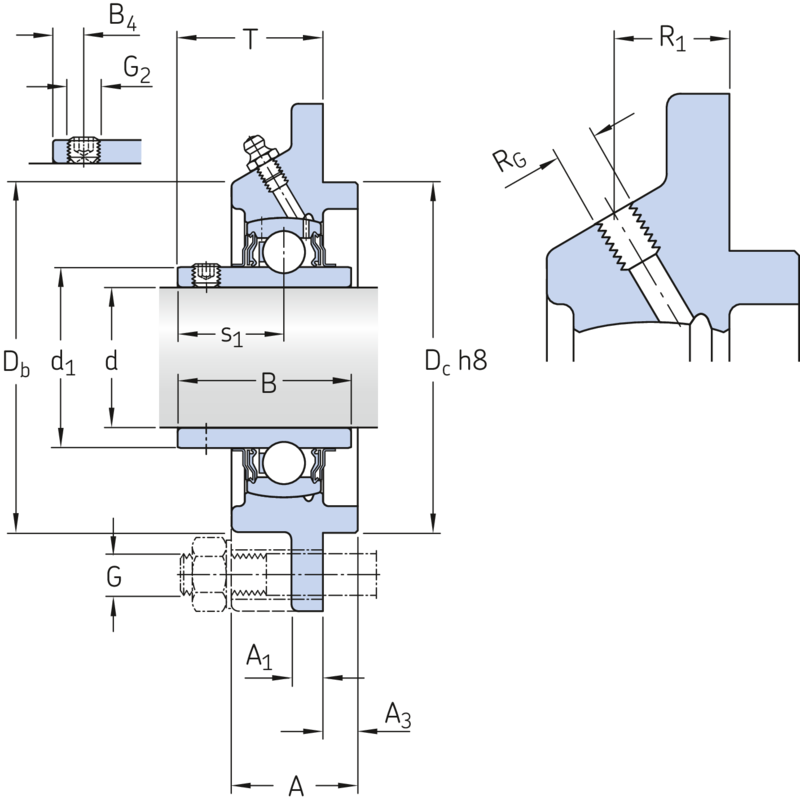

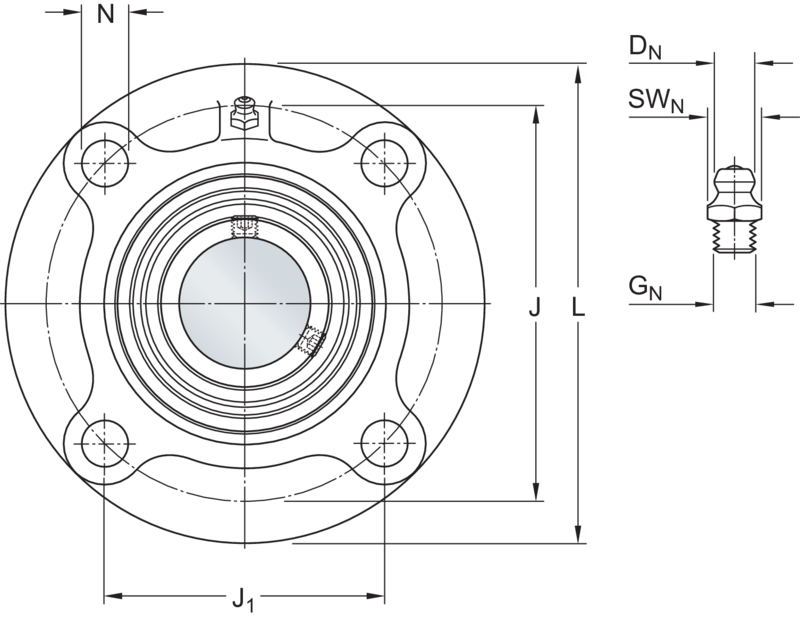

Dimensions

Housing material			Ghisa
d		65	mm
A		50	mm
A1		15	mm
A3		14	mm
B		68.3	mm
B4		10	mm
Da	h8	145	mm
Db		152.1	mm
J		170	mm
J1		120.2	mm
L		205	mm
N		19	mm
s1		42.9	mm
T		58.9	mm

Threaded hole

RG		1/4-28 UNF
R1		24.5	mm

Grease fitting

DN	6.5	mm
SWN	7	mm
GN	1/4-28 SAE-LT

Calculation data

Basic dynamic load rating	C	57.2	kN
Basic static load rating	C0	40	kN
Fatigue load limit	Pu	1.7	kN
Limiting speed with shaft tolerance h6		3000	r/min

Mass

Mass unit			5.55	kg

Mounting information

Thread grub screw	G2	M10x1
Hexagonal key size for grub screw	N	5	mm
Recommended tightening torque for grub screw		16.5	N·m
Recommended diameter for attachment bolts, mm	G	16	mm
Recommended diameter for attachment bolts, inch	G	0.625	in

Appertaining products

Bearing			YAR 213-2F
Housing			FYC 513

Valutazioni

Descrizione

Unità Y con flangia rotonda e triangolare

Dimensions

Housing material

Ghisa

68.3

145

152.1

170

120.2

205

42.9

58.9

1/4-28 UNF

24.5

6.5

SWN

1/4-28 SAE-LT

Calculation data

Basic dynamic load rating

57.2

Basic static load rating

Fatigue load limit

1.7

Limiting speed with shaft tolerance h6

3000

r/min

5.55

M10x1

Hexagonal key size for grub screw

16.5

N·m

0.625

Appertaining products

Bearing

YAR 213-2F

Housing

FYC 513
